Air Cooled Chillers

Deskripsi Produk

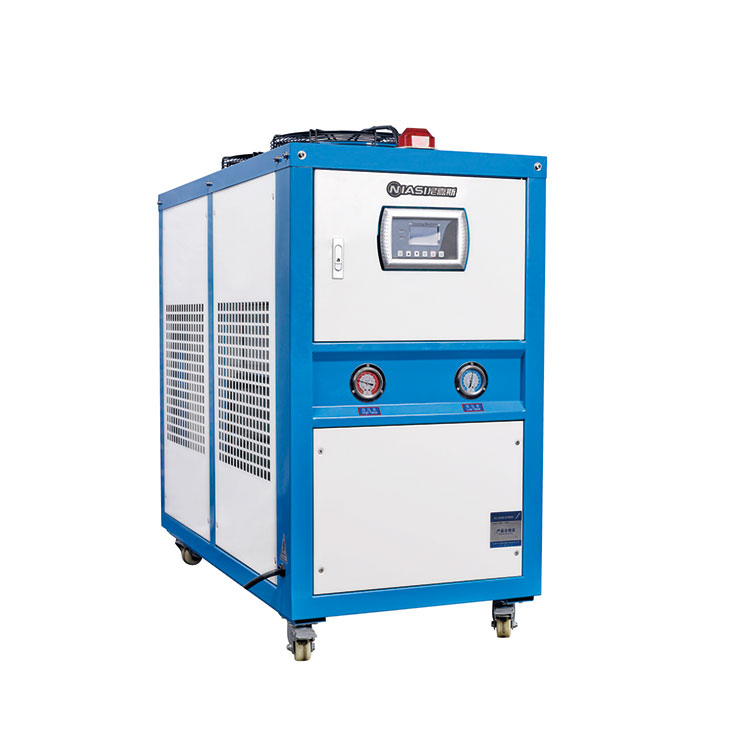

Air Cooled Chillers

Air Cooled Chillers sing diprodhuksi dening Niasi nduweni kondensor sirip, njamin konduksi panas kanthi cepet lan pambuangan panas sing apik banget tanpa mbutuhake banyu adhem. Air Cooled Chillers bisa nyediakake banyu es saka 5 nganti 35 ° C, kanthi jinis suhu sing kurang bisa nganti 3 ° C (prabédan suhu ora ngluwihi ± 1 ° C). Daya kompresor kisaran saka 3HP nganti 50HP, kanthi kapasitas pendinginan nganti 7800 nganti 128500 Kkal/jam.

Air Cooled Chillers digawe pabrik Niasi nggunakake kompresor impor lan pompa banyu sing diimpor, njamin keamanan, operasi sing tenang, efisiensi energi, lan daya tahan.

Fitur tombol:

Dilengkapi pengontrol suhu kanthi komputerisasi, Air Cooled Chillers nawakake operasi sing gampang lan kontrol suhu banyu sing tepat ing ± 3 ° C nganti ± 5 ° C.
Desain unik saka condenser lan radiator nambah efficiency exchange panas.
Air Cooled Chillers dilengkapi proteksi kakehan, kontrol tekanan dhuwur lan kurang, lan piranti safety wektu tundha elektronik. Iku kanthi cepet menehi tandha lan nampilake panyebab kerusakan apa wae.
Air Cooled Chillers dilengkapi tangki banyu terisolasi stainless steel 304 sing dibangun, nyedhiyakake daya tahan lan gampang ngresiki.
Fitur proteksi pembalikan fase lan proteksi anti beku.

Tipe Model			NC 5AS	NC 6 AS	NC 7 AS	NC 8AD	NC 9 AS	NC 12 Masehi	NC 14 AS	NC 16 AS	NC 20 AS(D)	NC 25 AS(D)	NC 30 SA(D)	NC 40 AS(D)	NC 50 AS(D)
Dirating pendinginan Kapasitas	50HZ	Btu/h	36427	48820	57082	66095	70977	94636	110409	126181	189272	228704	252363	378544	457408
		KW	10.67	14.3	16.72	19.36	20.79	27.72	32.34	36.96	55.44	66.99	74.9	110.88	133.98
		Kkal/h	9175	12296	14377	16647	17876	23835	27807	31780	47670	57601	57082	66095	70977
		USRT	3.0	4.1	4.8	5.5	5.9	7.9	9.2	10.5	15.8	19.0	21.0	31.5	38.1
daya ing sijine			200 ~ 220V/1PHASE/50HZ						200 ~ 220V/1PHASE/50HZ
Compress utawa Power		kw	3.68	4.82	5.6	6.16	7.02	9.8	11.89	13.42	9,82x2	11.89x2	13.42x2	19.32x2	23,79x2
Pengatur aliran
Refrigerant			R22
Condensr	Gaya		Highly efektif copperpipe abang soket string aluminium swiwi piece + noise sumbu penggemar kurang
	mili banyu	m3/jam
	diameteripun bend	DN
Evaporator	Gaya		Tank banyu nganggo Coil utawa Tube-in-Shell
Evaporator	kapaoty fank banyu	L	55	75	75	145	210	210	250	360	510	510	510	600	780
Aliran banyu beku standar		m3/jam	1.84	2.46	2.88	3.33	3.58	4.77	5.57	6.37	9.55	11.54	12.73	19.10	23.08
Dhiameter puting standar		DN	25	32	32	32	32	40	40	40	50	65	65	80	80
Pompa sing dibangun	Daya kuda	Hp	0.5	0.75	1	1	1	1	1	1.5	2	3	3	5	5
Bobot mesin	bobot	Kg	176	260	280	320	380	410	680	710	830	1200	1400	1520	1620
