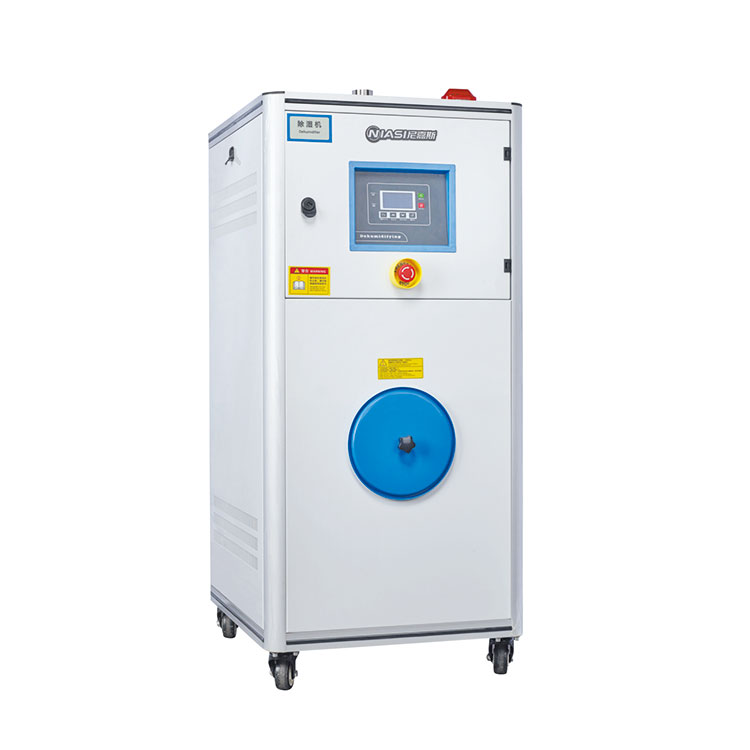

Dehumidifiers Plastik Industri diprodhuksi dening Pabrik Niasi dirancang khusus kanggo operasi dehumidification efisien ing plastik engineering Highly hygroscopic kayata Nylon, PC, PBT, PET, etc. Dehumidifiers Plastik Industri nggunakake rotor efisiensin dhuwur, kang, ing kahanan becik, njamin dehumidification stabil kanthi titik embun -40 ℃. Aliran udara pangatusan antara 50 nganti 1000m3 / jam.
Dehumidifiers Plastik Industri diprodhuksi dening Pabrik Niasi dirancang khusus kanggo operasi dehumidification efisien ing plastik engineering Highly hygroscopic kayata Nylon, PC, PBT, PET, etc. Dehumidifiers Plastik Industri nggunakake rotor efisiensin dhuwur, kang, ing kahanan becik, njamin dehumidification stabil kanthi titik embun -40 ℃. Aliran udara pangatusan antara 50 nganti 1000m3 / jam.
Dehumidifier Plastik Industri sing diprodhuksi Niasi iki nggunakake sistem kontrol suhu PID kanggo ngatur suhu regenerasi kanthi tepat, njamin stabilitas titik embun.
Model | ND-50 | ND-80 | ND-120 | ND-150 | ND-200 | ND-300 | ND-400 | ND-500 | ND-700 | ND-1000 | ND-1500 | ND-2000 | ND-3000 | |
Kapasitas Udara Dehumidfying | CMH | 50 | 80 | 120 | 150 | 200 | 300 | 400 | 500 | 700 | 1000 | 1500 | 2000 | 3000 |
Dehumidifying Motor | KW | 0.55 | 0.55 | 0.75 | 1.1 | 1.5 | 2.2 | 3.0 | 5.5 | 7.5 | 9 | 18 | 26 | 39 |
Udan.Mesin | KW | 0.18 | 0.18 | 0.25 | 0.37 | 0.55 | 0.75 | 0.75 | 1.5 | 2.2 | 2.4 | 3.4 | 5.5 | 7.5 |
Regen.Pemanas | KW | 2 | 2.7 | 3.5 | 4 | 4 | 6 | 6 | 9 | 15 | 15 | 20 | 20 | 30 |
Ukuran Pipa | inch | 2 | 2 | 2 | 2.5 | 2.5 | 3 | 3 | 3 | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 |
Kapasitas Motor rotor | W | 15 | 40 | 60 | 80 | 120 | ||||||||
Power Supply | V | AC220~480V, 3P 50/60Hz | ||||||||||||
Tegangan Kontrol | V | AC 220V, 1P | ||||||||||||
Total Daya | KW | 3.25 | 3.45 | 5.1 | 7.1 | 7.5 | 10 | 10.8 | 22 | 24.8 | 26.5 | 41.5 | 51.6 | 76.7 |
Spesifikasi Wire | m㎡ | 4x4 | 4x | 6 | 4x10 | 4x10 | 4x10 | 4x16 | 4x25 | 4x35 | ||||
Wire Length | M | 6 | ||||||||||||
HxWxD | W (mm) | 570 | 620 | 620 | 620 | 620 | 620 | 1000 | 1000 | 1000 | 1000 | 1350 | 1550 | 2160 |
Dmm) | 780 | 820 | 820 | 820 | 940 | 940 | 1300 | 1300 | 1300 | 1400 | 1450 | 1650 | 1600 | |
H (mm) | 1400 | 1400 | 1400 | 1400 | 1720 | 1720 | 1900 | 1900 | 1900 | 1900 | 2300 | 2400 | 2500 | |
Aliran banyu adhem | 3 | 9 | 25 | |||||||||||
Ukuran Pipa Air Pendingin | inch | 3/4 | 1 | 1.5 | ||||||||||
Cooling Water Pipe Length | ||||||||||||||
Bobot | KG | 150 | 215 | 265 | 272 | 392 | 405 | 575 | 650 | 880 | 880 | 950 | 1050 | 1130 |
Pilihan |
Mmateri | Pangatusan. | garing29. |
Speafic
Panas
(Jkg.C)
|
Specfic
(kg/dm)
|
Pangeringan(%) |
Anther
Pangeringan(%)
|
Kapasitas Pangeringan | ||||||||||||||
ND-30 | ND-50 | ND-80 | ND-120 | ND-150 | ND-200 | ND-300 | ND-400 | ND-500 | ND-700 | ND-1000 | ND-1500 | NO-2000 | ND-3000 | ND-4000 | |||||||
ABS | 80 | 2-3 | 0.34 | 0.6 | 0.3 | 0.02 | 11 | 18 | 27 | 35 | 71 | 105 | 180 | 210 | 285 | 355 | 425 | 710 | 1065 | 1500 | 1600 |
CA | 75 | 2-3 | 0.5 | 0.5 | 1 | 0.02 | 9 | 15 | 22 | 30 | 60 | 90 | 150 | 180 | 235 | 295 | 355 | 590 | 885 | 1200 | 1330 |
CAB | 75 | 2-3 | 0.5 | 0.5 | 0.8 | 0.02 | 9 | 15 | 22 | 30 | 60 | 90 | 150 | 180 | 235 | 295 | 355 | 590 | 885 | 1200 | 1330 |
CP | 75 | 2-3 | 0.6 | 0.6 | 1 | 0.02 | 11 | 18 | 27 | 35 | 71 | 106 | 180 | 210 | 235 | 355 | 425 | 710 | 1060 | 1500 | 1600 |
LCP | 150 | 4 | 0.6 | 0.6 | 0.04 | 0.02 | 8 | 13 | 20 | 27 | 55 | 80 | 135 | 160 | 210 | 265 | 320 | 530 | 800 | 1150 | 1200 |
POM | 100 | 2 | 0.35 | 0.6 | 0.2 | 0.02 | 16 | 27 | 40 | 53 | 105 | 160 | 265 | 320 | 425 | 530 | 640 | 1060 | 1600 | 1800 | 2400 |
IONOMER | 90 | 3-4 | 0.55 | 0.5 | 0.1 | 0.04 | 7 | 11 | 17 | 22 | 44 | 66 | 111 | 133 | 177 | 220 | 265 | 442 | 663 | 750 | 1000 |
PAB666.10 | 75 | 4-6 | 0.4 | 0.65 | 1 | 0.05 | 6 | 10 | 14 | 19 | 38 | 58 | 96 | 115 | 153 | 192 | 230 | 383 | 575 | 960 | 1040 |
Pa11 | 75 | 4-5 | 0.58 | 0.65 | 1 | 0.05 | 7 | 12 | 17 | 23 | 46 | 69 | 115 | 138 | 184 | 230 | 275 | 460 | 690 | 780 | 1150 |
Pa12 | 75 | 4-5 | 0.28 | 0.65 | 1 | 0.05 | 7 | 12 | 17 | 23 | 46 | 69 | 115 | 138 | 184 | 230 | 275 | 460 | 690 | 780 | 1150 |
PC | 120 | 2-3 | 0.28 | 0.7 | 0.3 | 0.01 | 13 | 21 | 31 | 41 | 83 | 124 | 206 | 250 | 330 | 413 | 495 | 826 | 1238 | 1400 | 1860 |
PU | 90 | 2-3 | 0.45 | 0.65 | 0.3 | 0.02 | 11 | 19 | 29 | 38 | 77 | 115 | 190 | 230 | 307 | 383 | 460 | 767 | 1150 | 1530 | 2080 |
PBT | 130 | 3-4 | 0.3-0.5 | 0.7 | 0.2 | 0.02 | 9 | 15 | 23 | 31 | 62 | 93 | 155 | 186 | 248 | 310 | 372 | 620 | 930 | 1100 | 1600 |
pe | 90 | 1 | 0.55 | 0.6 | 0.01 | <0.01 | 32 | 53 | 80 | 106 | 212 | 318 | 531 | 637 | 850 | 1062 | 1275 | 2125 | 3185 | 3600 | 4800 |
PEI | 150 | 3-4 | 0.6 | 0.6 | 0.25 | 0.02 | 8 | 13 | 20 | 27 | 53 | 80 | 133 | 160 | 212 | 265 | 320 | 530 | 800 | 1030 | 1370 |
PET | 160 | 4-6 | 0.3-0.5 | 0.85 | 0.2 | 0.05 | 8 | 13 | 19 | 25 | 50 | 75 | 125 | 150 | 200 | 250 | 300 | 500 | 750 | 1150 | 1360 |
PETG | 70 | 3-4 | 0.6 | 0.6 | 0.5 | 0.02 | 8 | 13 | 20 | 27 | 53 | 80 | 133 | 160 | 212 | 265 | 320 | 530 | 800 | 1030 | 1370 |
PEN | 170 | 5 | 0.85 | 0.85 | 0.1 | 0.05 | 9 | 15 | 23 | 30 | 60 | 90 | 150 | 180 | 240 | 300 | 360 | 600 | 900 | 1150 | 1360 |
PES | 150 | 4 | 0.7 | 0.7 | 0.8 | 0.02 | 9 | 15 | 23 | 30 | 60 | 90 | 150 | 180 | 240 | 630 | 360 | 600 | 900 | 1050 | 1400 |
PMMA | 80 | 3 | 0.65 | 0.65 | 0.5 | 0.02 | 11 | 19 | 29 | 38 | 77 | 115 | 190 | 230 | 310 | 385 | 460 | 765 | 1150 | 1530 | 1730 |
PPO | 110 | 1-2 | 0.4 | 0.5 | 0.1 | 0.04 | 13 | 22 | 33 | 44 | 88 | 133 | 220 | 265 | 355 | 440 | 530 | 885 | 1330 | 1730 | 2660 |
PPS | 150 | 3-4 | 0.6 | 0.6 | 0.1 | 0.02 | 8 | 13 | 20 | 27 | 53 | 80 | 133 | 160 | 212 | 265 | 320 | 530 | 800 | 1030 | 1370 |
PU | 120 | 2 | 0.27 | 0.6 | 0.4 | 0.02 | 16 | 27 | 40 | 53 | 105 | 160 | 265 | 320 | 425 | 530 | 640 | 1060 | 1600 | 1800 | 2400 |
PP | 90 | 1 | 0.46 | 0.5 | 0.1 | 0.02 | 26 | 44 | 66 | 88 | 180 | 265 | 442 | 530 | 710 | 885 | 1060 | 1770 | 2655 | 3500 | 4000 |
PS(GP) | 80 | 1 | 0.28 | 0.5 | 0.1 | 0.02 | 26 | 44 | 66 | 88 | 180 | 265 | 442 | 531 | 708 | 885 | 1062 | 1770 | 2655 | 3500 | 4000 |
PSU | 120 | 3-4 | 0.31 | 0.65 | 0.3 | 0.02 | 8 | 14 | 22 | 29 | 60 | 85 | 145 | 173 | 230 | 290 | 345 | 575 | 865 | 1300 | 1485 |
PVC | 70 | 1-2 | 0.2 | 0.5 | 0.1 | 0.02 | 13 | 22 | 33 | 44 | 90 | 135 | 220 | 265 | 355 | 442 | 530 | 885 | 1330 | 1730 | 2660 |
PAN(AS) | 80 | 1-2 | 0.32 | 0.5 | 0.1 | 0.05 | 13 | 22 | 33 | 44 | 90 | 135 | 220 | 265 | 355 | 442 | 530 | 885 | 1330 | 1730 | 2660 |
TPE | 110 | 3 | 0.7 | 0.7 | 0.1 | 0.02 | 13 | 20 | 30 | 40 | 85 | 125 | 205 | 250 | 330 | 413 | 495 | 826 | 1238 | 1650 | 1860 |
